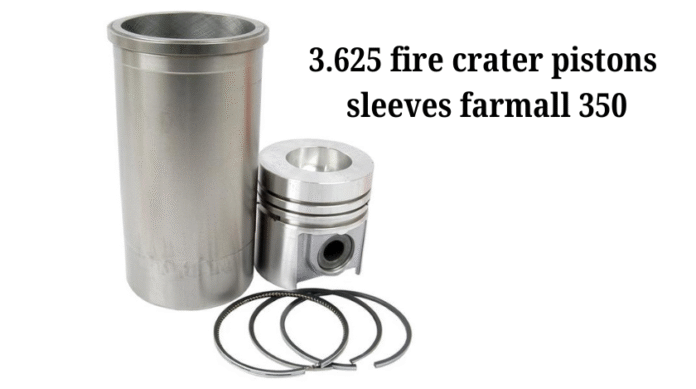

3.625 Fire Crater Pistons Sleeves Farmall 350

First off, let’s get to know the star of the show: the Farmall 350. Built by International Harvester between 1956 and 1958, this tractor was part of the popular “50 series.” It came with a few engine options gasoline, diesel, and even LP gas but we’re focusing on the gasoline version here, which typically rocks the C175 engine. That’s a 175 cubic inch, four-cylinder beast that’s been a reliable workhorse for decades.

Why does this matter? Well, the pistons and sleeves we’re talking about the ones with a 3.625-inch bore are key players in keeping that C175 engine humming. Whether you’re restoring a vintage Farmall 350 or fixing up an old faithful, understanding these parts is your ticket to a smooth-running tractor. Pistons move up and down in the cylinders to turn fuel into power, while sleeves (or cylinder liners) give them a sturdy, smooth surface to slide against. When they wear out, it’s time for a replacement and that’s where fire crater pistons come into the picture.

What Are Fire Crater Pistons?

So, what’s the deal with “fire crater” pistons? The name sounds pretty cool, right? It’s not just marketing flair it describes a specific design. Unlike your basic flat-top pistons, fire crater pistons have a recessed area, or “crater,” on top. Think of it like a little bowl carved into the piston crown. This isn’t just for looks it’s all about making the engine work better.

Design and Features

In a typical engine, the combustion chamber’s shape is mostly set by the cylinder head. But with fire crater pistons, the piston itself helps shape that space. That crater changes how the air and fuel mix and burn, aiming for a more efficient combustion process. For the Farmall 350’s C175 engine, these pistons are crafted to fit its 3.625-inch bore perfectly, usually made from a tough aluminum alloy that balances strength and weight.

Benefits of Fire Crater Pistons

Why go with fire crater pistons instead of something else? Here’s the scoop:

• Better Combustion: The crater design can improve how the fuel and air swirl together, leading to a more complete burn. That means more power and better fuel efficiency.

• Less Knocking: Ever hear your engine ping or knock? That’s premature detonation of the fuel mix. Fire crater pistons might help smooth that out.

• Lower Emissions: A cleaner burn can mean fewer nasty exhaust fumes good for the environment and your tractor shed’s air quality.

Now, these perks aren’t guaranteed to transform your Farmall 350 into a racecar, but for a restoration or rebuild, they can help bring back that original pep or maybe even boost it a bit.

Specifications of 3.625-Inch Pistons and Sleeves

Let’s get technical for a minute. The Farmall 350’s C175 engine has a standard bore of 3.625 inches (that’s about 92.075 mm if you’re metric-minded). When you’re replacing pistons and sleeves, matching that size is non-negotiable for everything to fit and function right.

Bore Size and Compatibility

A typical piston and sleeve kit for the Farmall 350 includes:

• 4 pistons (with that fire crater design)

• 4 sleeves

• Piston rings

• Wrist pins (also called piston pins)

• Retainers or clips

The sleeves are usually cast iron tough stuff that stands up to years of wear. The pistons? Aluminum alloy, as we mentioned, with a wrist pin diameter of about 0.875 inches (22.225 mm). When shopping, make sure the kit is labeled for the Farmall 350 or the C175 engine. Some kits work across multiple models, so double-check compatibility.

Materials and Construction

Why aluminum for pistons? It’s lightweight, which reduces strain on the engine, and it conducts heat well, keeping things cool under pressure. Cast iron sleeves, meanwhile, are all about durability they resist scoring and wear, giving your pistons a long-lasting home.

Here’s a quick comparison table to see how fire crater pistons stack up against standard ones:

Note: Compression ratios depend on the exact engine setup, but fire crater pistons are typically tuned for the C175’s needs.

Installing Fire Crater Pistons and Sleeves in Farmall 350

Ready to get your hands dirty? Installing pistons and sleeves is a big job part of a full engine overhaul. If you’re new to this, it might be worth teaming up with a pro. But if you’re game to tackle it, here’s a step-by-step rundown.

Preparation and Tools Needed

Before you start, gather your gear:

• Piston ring compressor

• Torque wrench

• Feeler gauges

• Engine hoist (unless you’re Superman)

• Your piston and sleeve kit

• Basic mechanic’s tools (wrenches, sockets, etc.)

• A Farmall 350 service manual (trust me, it’s a lifesaver)

Step-by-Step Installation Guide

1. Prep Work: Disconnect the battery, drain the coolant and oil, and get ready to pull the engine.

2. Remove the Engine: Unhook the radiator, exhaust, and linkages, then hoist the engine out. This isn’t a quick job give yourself space and time.

3. Disassemble: Take off the cylinder head, oil pan, and connecting rods. Gently remove the old pistons and sleeves.

4. Clean Up: Scrub the engine block clean no debris or old gunk allowed. Check for cracks or wear.

5. Install Sleeves: Press the new sleeves into the block. They should sit flush and snug.

6. Prep Pistons: Fit the new rings onto the pistons (check the manual for orientation), then use the ring compressor to squeeze them tight.

7. Insert Pistons: Slide each piston into its sleeve, aligning the connecting rod with the crankshaft. Take it slow patience pays off here.

8. Reassemble: Bolt the connecting rods back, reattach the oil pan and cylinder head, and torque everything to spec.

9. Reinstall Engine: Lower the engine back into the tractor and reconnect everything.

10. Test Run: Fire it up, listen for odd noises, and watch for leaks. Follow a break-in period gentle running for the first few hours to seat the new parts.

This is the short version. Your service manual will have torque values and finer details don’t skip it!

Where to Buy Fire Crater Pistons and Sleeves for Farmall 350

Need the parts? You’ve got options:

• Online Retailers:

  • Yesterday’s Tractors

  • Steiner Tractor Parts

  • Burch Store Tractors

• Marketplaces: eBay or similar great for new or used parts, but check seller ratings.

• Local Sources: Tractor salvage yards or restoration shops near you.

When ordering, specify “Farmall 350,” “C175 engine,” and “3.625-inch bore.” Confirm the kit has fire crater pistons if that’s your goal. Prices usually range from $300 to $400, depending on what’s included.

Here’s a handy table of some options:

Prices vary check current listings.

Comparing Fire Crater Pistons with Other Types

Not sure if fire crater pistons are right for you? Let’s compare them to other types:

• Flat-Top Pistons: Simple, flat surface. Common and reliable, but less influence on combustion shape.

• Dome Pistons: Raised top, increases compression for more power. Great for performance builds, less for stock restorations.

• Fire Crater Pistons: Dished top, optimizes combustion for efficiency and smoothness.

For a Farmall 350 aiming for original specs or slight improvement, fire crater pistons are a solid pick. If you’re hot-rodding your tractor, a dome might tempt you but that’s a different project.

Maintenance Tips for Farmall 350 Engine

Once your new pistons and sleeves are in, keep that engine happy with these tips:

• Oil Up: Change oil and filter every 50-100 hours of use (check your manual).

• Stay Cool: Clean the radiator and use a 50/50 coolant mix.

• Breathe Easy: Swap out the air filter when it’s dirty dust is an engine’s enemy.

• Spark It: Inspect and replace spark plugs as needed.

• Fuel Fresh: Use clean gas and a stabilizer for long storage.

Simple stuff, but it’ll keep your Farmall 350 chugging along.

FAQ Section

Got questions? Here are answers to some common ones:

What is a fire crater piston?

It’s a piston with a recessed “crater” on top, designed to improve combustion by shaping the chamber.

Are fire crater pistons compatible with my Farmall 350?

Yep, as long as they’re 3.625-inch bore and match the C175 engine’s specs.

How do fire crater pistons affect engine performance?

They can boost efficiency, reduce knocking, and maybe even cut emissions a bit.

Can I install fire crater pistons myself?

You can, but it’s tricky experience and tools are a must. Pros are an option if you’re unsure.

Where can I buy fire crater pistons and sleeves for my Farmall 350?

Try online spots like Steiner or Yesterday’s Tractors, or hit up local salvage yards.

What’s the difference between fire crater and flat-top pistons?

Fire crater has a dish for better combustion; flat-tops are simpler and flatter.

Do I need to replace sleeves with new pistons?

Usually, yes worn sleeves won’t seal well with fresh pistons.

How much does a piston and sleeve kit cost for a Farmall 350?

Expect $300-$400, depending on the kit and supplier.

Conclusion

There you have it everything you need to know about 3.625 fire crater pistons and sleeves for your Farmall 350. From their unique design to installation tips and where to snag them, you’re ready to tackle your next tractor project. Whether you’re restoring a classic or keeping an old friend running, these parts can make a big difference. Happy wrenching!
